IMPACT SOUND PANELS, STAIR DOWEL and STAIR BASE DOWEL
PRODUCTS FOR THE ACOUSTIC DECOUPLING OF THE STAIR FLIGHT
The impact sound insulation panels allow the acoustic separation of stair flights or landings with continuous corbels (half joints). The concrete elements can be made of in-situ concrete or as precast elements. The impact sound insulation panels can be easily adapted to different geometric shapes of the concrete elements by cutting them on site.
IMPACT SOUND PANELS, STAIR DOWEL and STAIR BASE DOWEL
Benefits
- Suitable for in-situ concrete or precast constructions
- Type-approved system
- Transmits shear forces up to +141,6 kN
- Transmits horizontal loads up to 28 kN
- The stair base angle can transmit horizontal forces of 10 kN per angle in a sound insulated manner
- Impact sound tested according to DIN 7396
- Impact sound reduction ΔL*n,w= 22 dB
- Fire protection certificate up to R120
- Standard lengths from 1,200 mm to 1,800 mm, customized lengths from 900 mm
IMPACT SOUND PANELS, STAIR DOWEL and STAIR BASE DOWEL
Application
IMPACT SOUND PANELS, STAIR DOWEL and STAIR BASE DOWEL
Types
IMPACT SOUND PANEL TYPE NF
 |
The Impact Sound Insulation Panel Type NF is used for the acoustic separation of stair flights or landings with continuous corbels (half joints). The concrete elements can be made of in-situ concrete or as precast elements. The impact sound insulation panel can be easily adapted to different geometric shapes of the stair base by cutting on site. The special type NF-VH can also transfer regular horizontal loads. |
IMPACT SOUND PANEL TYPE NB
 |
The Impact Sound Insulation Panel Type NB is used for the acoustic decoupling of a stair base or a landing from the ground slab. The impact sound insulation panel can be easily adapted to different geometric shapes of the stair base by cutting on site. The element to be separated can be made of in-situ concrete or as a precast element. |
IMPACT SOUND PANEL TYPE NL
 |

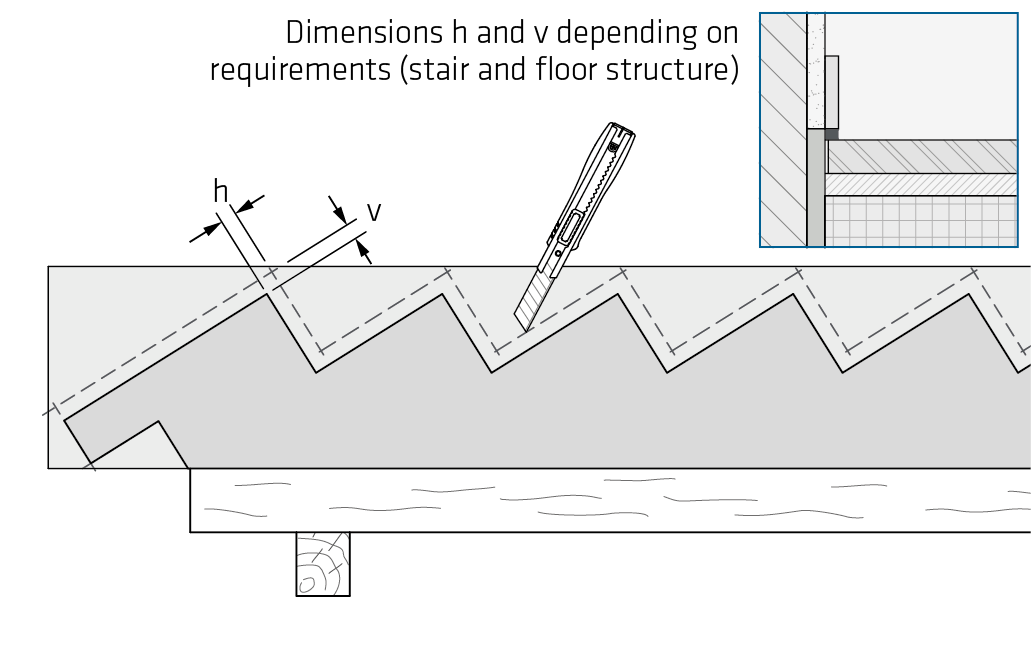

The Impact Sound Insulation Panel Type NL is used to form a joint without any acoustic coupling between stairs or landings and the staircase walls. The concrete elements can be made of in-situ concrete or as precast members. The panels are self-adhesive and consist of PE foam panels without any load-bearing capacity. The impact sound insulation panel can be easily adapted to different stair shapes by cutting on-site. |
STAIR DOWEL PD
 |
The Stair Dowel PD serves both to ensure the location of a concrete element within a structure and for acoustic separation at the stair base. The dowel can be used in precast and in-situ concrete stairs and is available in a galvanised version as well as a stainless steel version. |
STAIR BASE ANGLE TYPE PD-H
 |
The Stair Base Angle ensures the position of concrete elements that need to be acoustically separated. The angles are attached to the bottom of a stair to provide support against horizontal actions. |
IMPACT SOUND PANELS, STAIR DOWEL and STAIR BASE DOWEL
Installation / Placement
To ensure optimum impact sound insulation within a staircase system, all connections must be made correctly. When installing a flight of stairs, care must be taken to create a closed sound insulation system that completely encloses the component to be acoustically decoupled. The impact sound insulation panels form a circumferential unit to prevent sound transmission, while the
stair dowel or stair base angle ensures the position.
INSTALLATION OF PRECAST CONCRETE STAIRS
IMPACT SOUND PANELS
